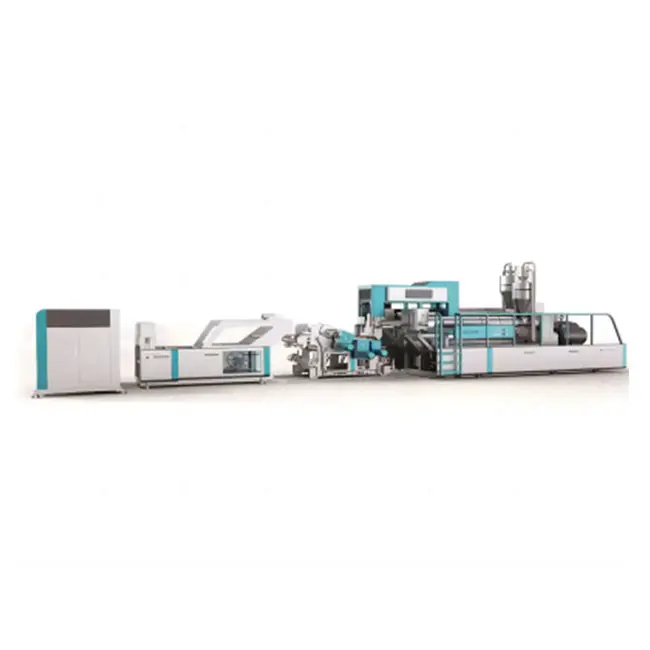

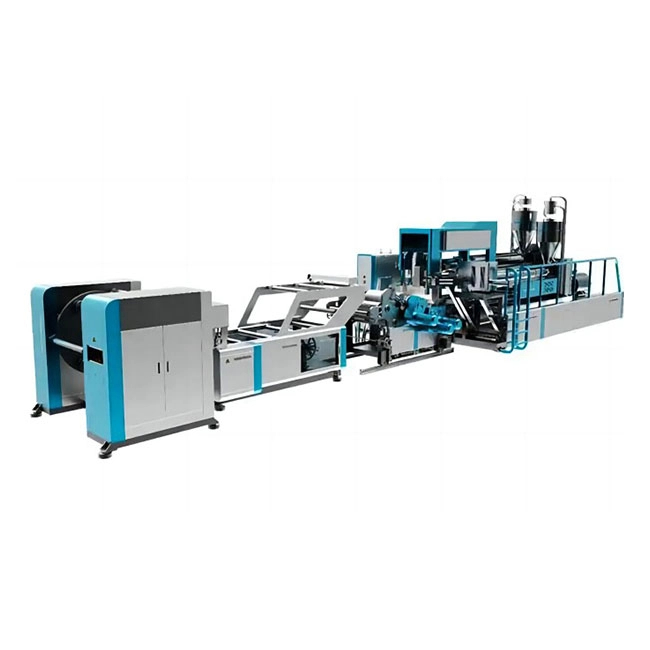

Plastic Sheet Extruder machine
| Model | ECI-75&42-1000 |
| Screw type | JWP twin screw extruder |
| Sheet material | PP,PET PVC |
| Sheet thickness | 0.2-1.5mm |
| Sheet Width | 1000mm |
| Max.extrusion | 400-500mm |
| Total power | 350Kw |
| Effice width of die | 1200mm |
| Effice width ofroller | 1300mm |
| Running power | 200KW |
| Dimension | 32m*6m*4m |
| Voltage | 3*380V 50 HZ |
| 1# 2# 3# roller size | Φ350-Φ450mm-Φ550 |
| Main motor | 132KW |
| L/D | 44 |
| Screw diameter | 71mm |
| Barrel hardness | HV1050 |
| Scerw hardness | HV950 |
| Heating power | 60KW |
| CIrculsting water pump | 0.55KW |
| Calender transnission power | 4Kw |
| Roller temperature control system | 4KW |
Product Advantage
1. The screw and barrel are made of nitrided steel. It enhances the screw and barrel’s resistance to wear, and it improves the heat transfer efficiency during processing, making the equipment’s operation stable and reliable. This also maintains low wear of the machine during work, thereby cutting the maintenance costs and increasing the longevity of the machine.
2. Hydraulic and manually driven mode are adopted for net changing by the net changer. The structure is a double column type double station that makes the equipment stable and reliable with immense output force and wide range of speed regulation.
3. It uses a domestic high-quality horizontal three-roll calender, hydraulic opening adjustment mode, adjustment accuracy, easy operation, good stability, self-locking function, safety emergency switch, never control system, and reliability. To ensure a reliable device
4. The control system is automatic with the double-station turning machine, so continuous winding follows winding to a certain degree, after which it automatically turns to another working position for continuous winding. It will achieve automatic take-up and turnover and reduce manual intervention for safer operation.
5. ECI-75/42 extrusion die head effective width: 1200 mm rolling effective width: 1300mm product width: 1000mm the product size range is wide the production efficiency is high, and the product display is uniformed.
Product Uses
Double layer sheet machine is widely used in the plastic processing industry for application scenarios including the manufacturing of plastic processing industry, plastic bags, plastic film, and more such products. Which is but not limited to the following industries.
1. Plastic processing industry: Double-layer sheet can be used to produce various plastic containers, for instance, airline cups, milk tea cups, bowls, etc. disposable lunch boxes, fruit & vegetable boxes, etc.
2. The double-layer sheet machine can produce the plastic packaging material into food packaging film, shopping bags, plastic wrap and much more fitting the diversified packaging needs of different industries.
3. Used for production of agricultural mulch including greenhouse mulch, mulch etc. to help agricultural production increase output and improve crop quality.
4. For the covering, packings, protections and other industrial applications by the industrial plastic film.
5. Medical and health field: apply to the production of medical plastic film, medical bags and other health products, medical equipment packaging, medical hygiene products, etc.
6. Other applications: The sheets produced by the tandem sheet machine can also be applied to floor materials, decorative materials as well as stationery and other fields.
