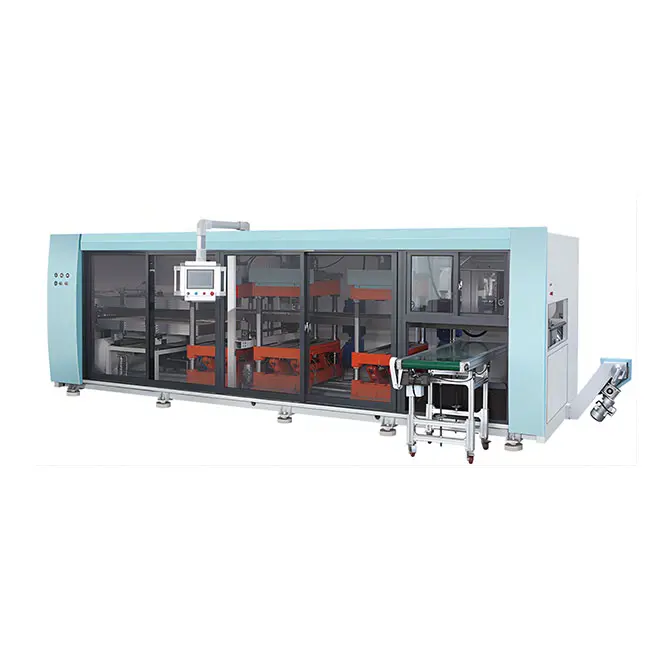

Multi-Station Thermoforming Machine
ECI-900/610 Thermoforming Machine Technical Parameters
| Model | ECI-900/610 |
| Sheet material | PP PET PS PVC HIPS ABS |
| Sheet thickness | 0.3-2.5mm |
| Sheet Width | 400-850mm |
| Max.Forming area | 780*610mm |
| Maximun forming depth of upper die | 150mm |
| Maximun forming depth of under die | 130mm |
| Sheet speed | 15-40 Strokes/min |
| Heating rated power | 180Kw |
| Upper path height | 180Kw |
| Lower power molding | 150KW |
| Mold height | 450-550mm |
| Punching up power | 150mm |
| Punching down power | 180mm |
| Punching die power | 300-400mm |
| Servo power on molding | 7.5Kw |
| Servo power under molding | 5.5KW |
| Punching servo power | 7.5KW |
| Punching servo power | 5.5KW |
| Tensile servo | 5Kw |
| Feed servo | 5.5KW |
| Stacking servo | 2KW |

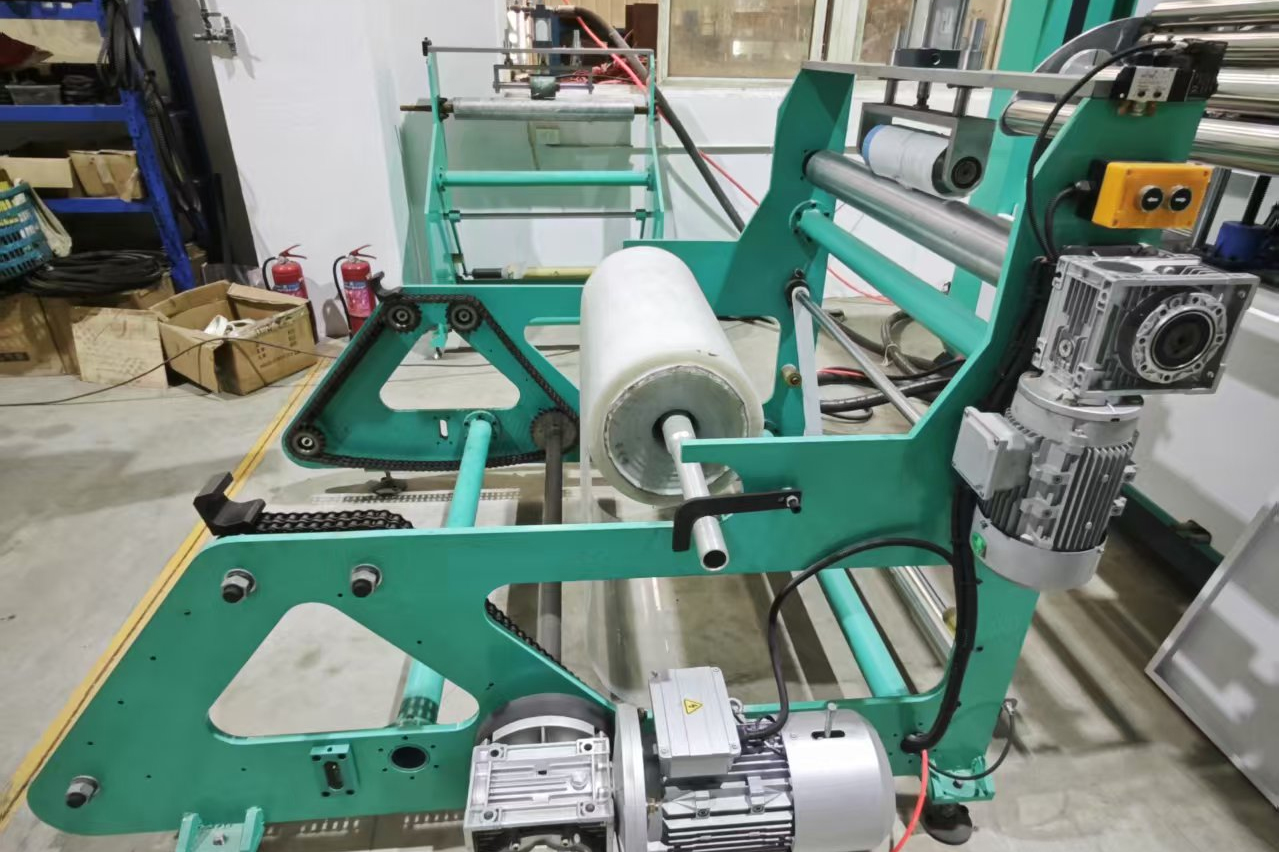

| Winding motor | 3Kw |
| Air pressure | 0.5-0.8Mpa |
| Voltage | 380V 50Hz |
| Total power | 275Kw |
| Dimension | L14m*W2.4m*H2.8m |
| Weight | 10.5T |
Product Features
-
Electric feeding, with a maximum load capacity of 800 kilograms of materials.

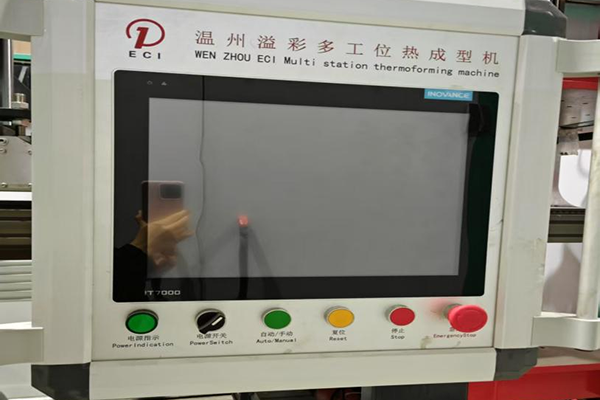

Touch screen: The operation of the machine is controlled by the PLC touch screen. The whole machine is equipped with the functions of storing formulas and electric adjustment. This function reduces the workload and technical requirements of the operators.

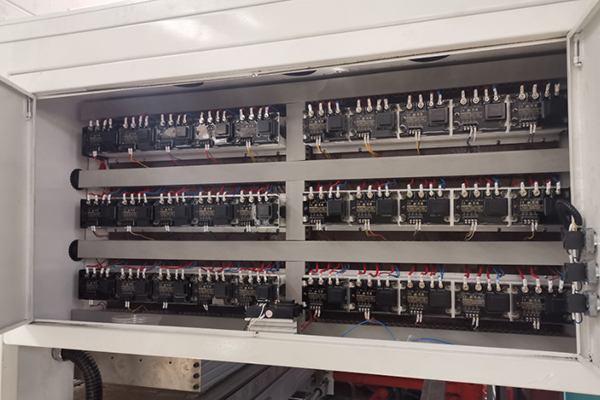

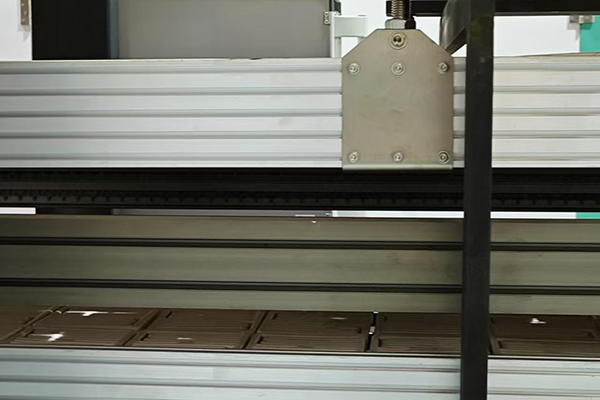

The electric furnace is made of heat-resistant stainless steel or pure aluminum. It features dual electric furnaces with five-stage heating. It uses imported heating wire bricks from Jiangsu Tianbao and imported high-temperature wires. It is equipped with an intelligent modular integrated temperature control system, which can automatically diagnose faults and store up to 1000 sets of data, ensuring safety and convenience

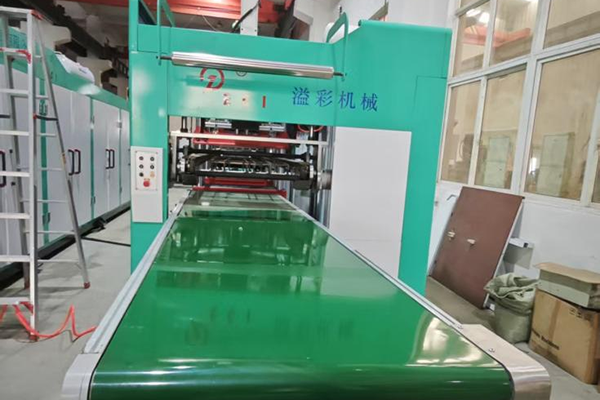

The accumulation conveyor is the core transmission device of modern continuous production lines, specially designed for multi-process integrated manufacturing scenarios. -
Intelligent temperature control system: Compared with traditional heating methods, our machine heats up faster and can start production within 3 minutes after startup. The temperature is stable, easy to adjust and can save about 10% of electricity

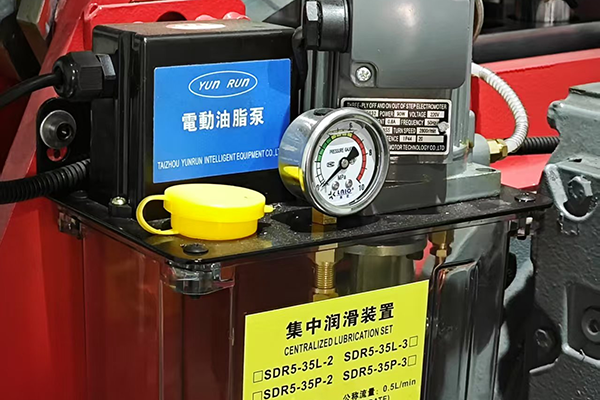

The automatic lubrication pump can extend the service life of the machine and ensure its operation without any problems.

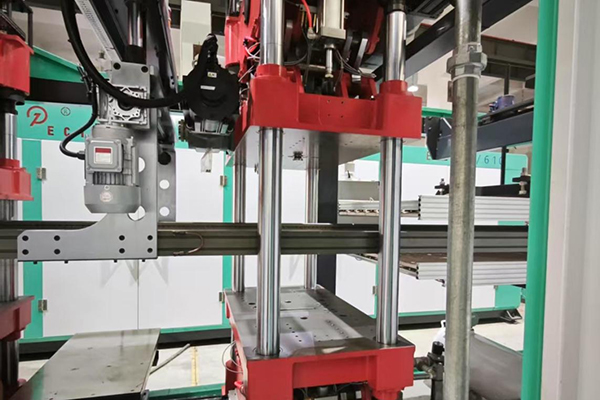

The cutting station drive is also driven by a full servo motor, which can effectively improve the productivity of the machine. While ensuring uniform cutting, the production speed of the machine can be faster, and the effective production efficiency can reach up to one minute at the fastest Thirty cycles.

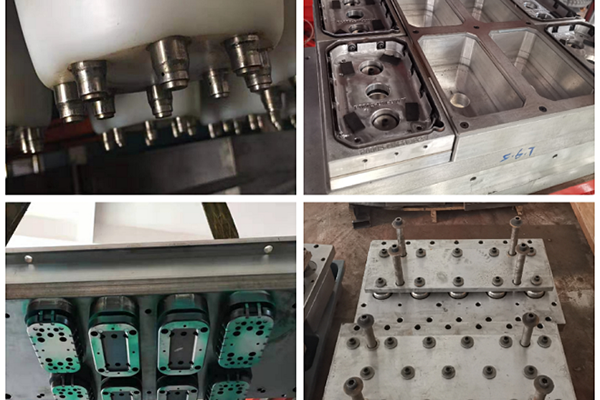

Mouid
ECI-900/610 Multi-station Thermoforming Machine Functional Features
Functional Features
The heating system adopts advanced up and down 7 zone 25 way heating technology, each heating zone can be individually controlled, can quickly and evenly heat the mold, to ensure that the plastic material can fully flow and form.
The molding mold is a key component of the multi-station thermoforming machine, which is made of high-strength and wear-resistant materials to ensure long-term stable production operation. The molding mold is designed to be quickly replaced to ensure the quality and accuracy of the molding product.
The automatic feeding system of the forming machine adopts advanced feeding device and control system, which can accurately and stably send plastic particles or particles into the mold to ensure the stability of the forming process.
The automatic demoulding system can quickly and accurately remove the molded product from the mold to ensure production efficiency and product quality.
The control system of the multi-station thermoforming machine usually adopts advanced control technology such as PLC or industrial computer, which can realize the precise control and monitoring of the automated production process.
After forming, the product needs to be cooled and cured, and the multi-station thermoforming machine is usually equipped with an efficient cooling system to ensure the dimensional stability and quality of the product.
Product Uses
The ECI-900/610 is a versatile, fully automatic multi-station thermoforming machine designed to meet the diverse packaging needs of the food and beverage industry. Whether you're in food production, fresh produce distribution, or any sector requiring high-quality plastic packaging, this machine offers the flexibility and efficiency to elevate your packaging process.
Food and Beverage Industry
Our machine, paired with the appropriate molds, excels in mass-producing:
-

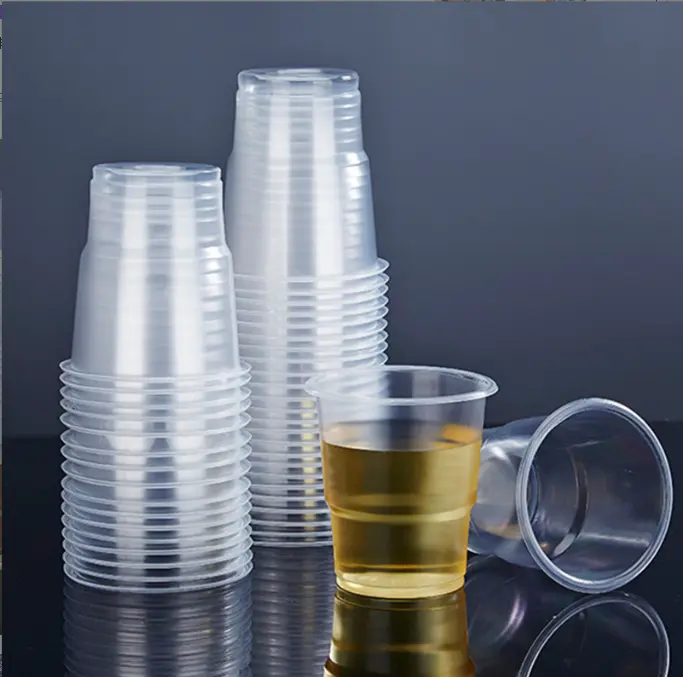

Plastic drink cups
-
Disposable food containers
-
Yogurt cups
-
Ice cream tubs
-
Coffee cup lids
Fresh Produce Packaging
The three-station configuration of our thermoforming machine efficiently creates:
- Vegetable trays
- Fruit clamshells
- Berry baskets
- Salad containers
Versatility and Efficiency
-
Suitable for processing various materials including PET, BOPS, HIPS, PP, PLA, PVC, and barrier materials
-
Working efficiency of 15-40 cycles per minute, with a maximum capability of 50 cycles per minute
-
Sheet width range of 400-850mm
-
Maximum molding area of 780 x 610mm
Product Operate Guide
When operating the thermoforming machine, the operator should operate in strict accordance with the equipment operating procedures and safety operation regulations to ensure production safety and product quality.
The procedure for the ECI-900/610 is as follows:
1. Prepare the sheet.
2. Check whether all equipment and safety devices are complete.
3. Start the thermoforming machine for preheating.
5. Set the appropriate heating temperature and time.
6. Select the appropriate mold to install on the machine and ensure that the mold is firmly installed.
7. Put the sheet into the feed port of the thermoforming machine, and pay attention to controlling the feeding speed and uniformity.
8. Start the forming process of the thermoforming machine,
9. Adjust the heating time, heating temperature and pressure.
10. After forming, stop heating and pressure.
11. After cooling and curing, open the mold and take out the molded plastic products.
12. Arrange the formed plastic products
13. Shut down the thermoforming machine for cleaning and maintenance.
Product Features
- Electric feeding, with a maximum load capacity of 800 kilograms of materials.
Touch screen: The operation of the machine is controlled by the PLC touch screen. The whole machine is equipped with the functions of storing formulas and electric adjustment. This function reduces the workload and technical requirements of the operators.
The electric furnace is made of heat-resistant stainless steel or pure aluminum. It features dual electric furnaces with five-stage heating. It uses imported heating wire bricks from Jiangsu Tianbao and imported high-temperature wires. It is equipped with an intelligent modular integrated temperature control system, which can automatically diagnose faults and store up to 1000 sets of data, ensuring safety and convenience
The accumulation conveyor is the core transmission device of modern continuous production lines, specially designed for multi-process integrated manufacturing scenarios. - Intelligent temperature control system: Compared with traditional heating methods, our machine heats up faster and can start production within 3 minutes after startup. The temperature is stable, easy to adjust and can save about 10% of electricityThe automatic lubrication pump can extend the service life of the machine and ensure its operation without any problems.
The cutting station drive is also driven by a full servo motor, which can effectively improve the productivity of the machine. While ensuring uniform cutting, the production speed of the machine can be faster, and the effective production efficiency can reach up to one minute at the fastest Thirty cycles.
Mouid
