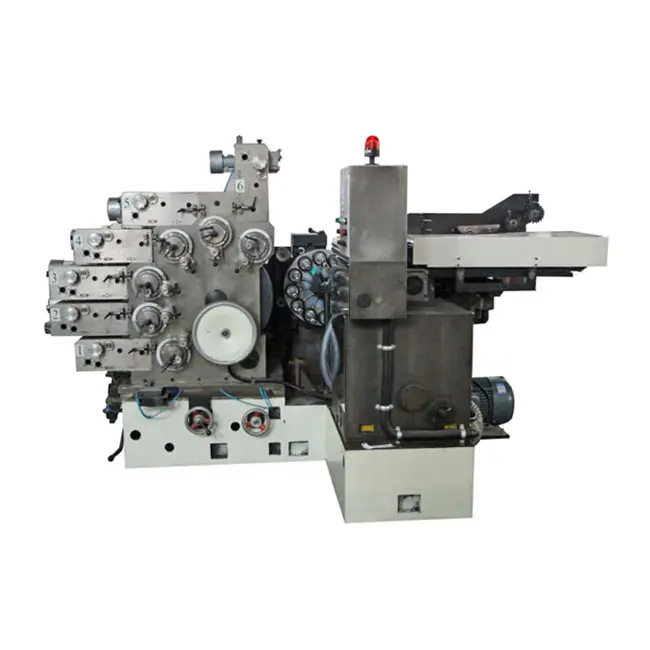

6-color Printing Machine

ECI-SPM is a flexible 6-color printing machine specialized in metal printing, which is suitable for the surface printing of metal containers such as aluminum tubes, aluminum cans, and cans, and can print up to six colors. Its main working principle is to transport the container through the conveyor chain to the loading place of the printing press, and the blank tube falls into the tube groove and plugs the printing mandrel. The ink is sent to the printing plate through the ink tank, ink roller, intermediate roller rubber roller, etc. The printing plate will send the required printing pattern to the drum and the drum will brush the image shadow onto the container.

Product Description

Product Advantage

Product Uses

Product Operate Guide

Model	ECI-SPM
Application pipe diameter	φ16-φ25mm/φ25-φ35mm
Application pipe length	≤200mm
Printing material	mteal
Printing color quanity	6
production speed	120P/min
Total power	19.17KW
Weight	7600Kg
Intake preesure	0.5Mpa
Voltage	380V 50 HZ
Overall dimension	334023302100mm

Product Advantage

The ECI-SPM metal soft printing machine boasts the following key features:

1.Ideal for Metal Hose Printing with Long-lasting Results: Specifically engineered for printing on metal hoses, the ECI-SPM utilizes advanced printing technology and a sophisticated control system to deliver high-precision printing. Whether it's text, patterns, or logos, the machine ensures clear and durable prints on metal hoses.

2.Versatile and Customizable Printing Capabilities: The machine supports multi-functional and diverse printing options, enabling the use of various colors and patterns for hose printing. It also features localized UV curing, enhancing print quality. This flexibility allows the machine to meet a wide range of customer demands, offering truly diversified and personalized printing solutions.

3.Fully Automated Operation: The ECI-SPM is equipped with automated functions, including automatic feeding, positioning, and printing. This automation significantly boosts production efficiency while minimizing the need for manual intervention.

4.Energy-efficient and Eco-friendly: The machine employs environmentally friendly printing materials and technologies, reducing its environmental footprint. Additionally, its high production efficiency conserves energy and raw materials, aligning with sustainable and eco-conscious manufacturing practices.

Product Uses

Metal hose presses are versatile and find extensive applications across various industries. Below are some key usage scenarios:

1.Cosmetics Industry: Metal hoses are frequently utilized for packaging cosmetic products such as water, lotions, moisturizing creams, foundation creams, sunscreen sprays, and hair care oils. The printing press can be employed to imprint product names, brand logos, product details, and other relevant information onto the metal hoses.

2.Pharmaceutical Industry: In the pharmaceutical sector, metal hoses are commonly used for packaging medications like ointments and creams. The printing press can be used to print essential information such as drug names, usage instructions, dosages, and expiration dates on the metal hoses.

3.Food Industry: Metal hoses are also widely used in food packaging, including products like toothpaste and sauces. The printing press can be utilized to print product names, ingredient lists, production dates, and other necessary information on the metal hoses.

4.Industrial Applications: Metal hoses have significant applications in the industrial field as well, such as packaging for lubricants, coatings, and insect sprays. The printing press can be used to print product models, specifications, safety warnings, and other pertinent information on the metal hoses.

5.Customized Gifts: The metal hose printing machine can also be used for creating customized gifts, such as personalized gift packaging tubes and souvenirs, offering customers unique and tailored customization services.

Product Operate Guide

The operational steps for a metal hose press typically include the following key stages:

Preparation:

Ensure the metal hose press is in proper working condition and verify that all equipment components are functioning correctly.
Prepare the metal hose for printing, ensuring its surface is clean and free of contaminants.
Prepare the required print pattern or text design.

Parameter Setup:

Based on the printing requirements, configure the appropriate printing parameters, including printing speed, pressure, and temperature.
Ensure that the equipment settings align with the specific printing needs.

Positioning Adjustment:

Place the metal hose on the press's worktable and adjust its positioning to ensure accurate print alignment.
Secure the metal hose to the worktable to prevent any movement or instability during the printing process.

Initiating the Printing Process:

Start the metal hose press to commence the printing operation.
Monitor the printing process closely to ensure the output meets the desired standards.
If necessary, make real-time adjustments to the printing parameters or positioning.

Completion of Printing:

Once the printing on the metal hose is complete, stop the press.
Inspect the printed results to ensure the quality meets the required specifications.
Remove the printed metal hose for subsequent processing or packaging.

Cleaning and Maintenance:

Power down the metal hose press and proceed with cleaning and maintenance tasks.
Clean the print head, worktable, and other components of the press to maintain cleanliness and order.
Perform regular maintenance on the metal hose press to prolong its operational lifespan.
