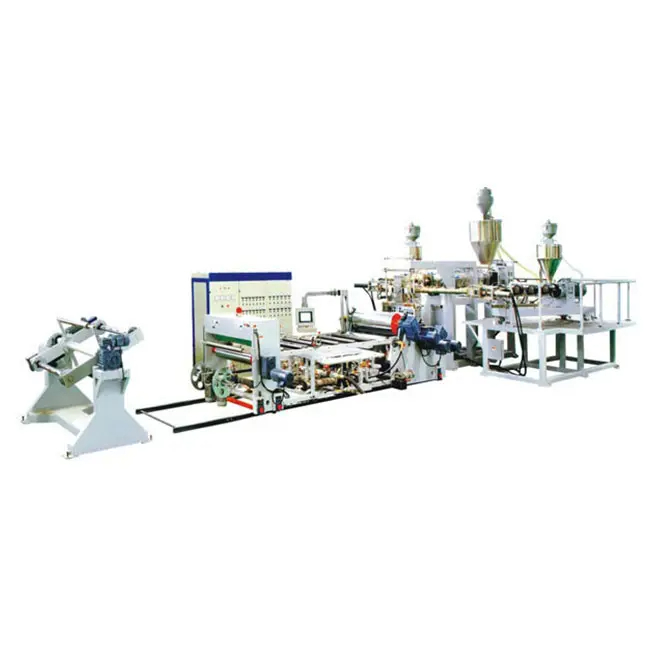

Multi-layer Co-Extruded Sheet Machine
| Model | ECI-120/1000 |
| Sheet material | PP,PET PVC HPS ABS |
| Sheet thickness | 0.3-3.0mm |
| Sheet Width | 850mm |
| Max.extrusion | 8000-9000Kg/ady |
| Total power | 220Kw |
| Main motor | 132Kw |
| Voltage | 380V 50 HZ |
| Weight | 8T |
| Sheet error | ±0.1mm |
| Fixed roll | Φ550*1000 |
| Middle roller | Φ550*1000 |
| Compression roll | Φ400*1000 |
| Metering pump potor | 11KW |
| Power consumption | 22KW/h |
| Sheet wire speed | 5-27M/min |
| Traction directioly connectied motor | 2.2Kw |
| Upper press and rubber roller | Φ200*1000 |
| Lower press and rubber roller | Φ200*1000 |
| MAximun coll diameter | ≤1000 |
Product Advantages
1. The screw of the sheet machine adopts a length-diameter ratio of 35:1 and a diameter of 120mm to ensure that the raw materials are fully extruded and plasticized.The main motor adopts 132-6 frequency conversion AC motor to achieve accurate speed control, meet the speed requirements under different working conditions, and the flexibility and applicability of the equipment is strong.
2. The screen changer adopts hydraulic plate double-station quick screen changer to quickly and automatically replace the screen, saving the time to replace the screen, improving production efficiency and reducing production downtime.
3. Ceramic energy-saving heating ring, uniform heating, high temperature resistance, high temperature resistance, long life, and strong insulation, effectively improve production efficiency and operation convenience.
4. The equipment adopts fully automated control system, automatic operation of the entire production process, advanced energy-saving technology and material recovery system, low energy consumption and environmental pollution.
Product Uses

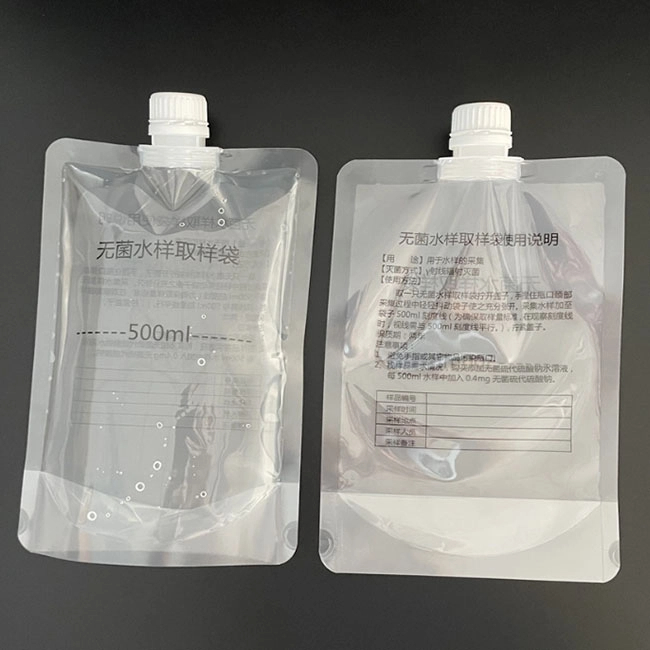

1. Packaging industry: five-layer co-extruding machine can be used to produce various packaging materials, such as food packaging film, pharmaceutical packaging film, cosmetic packaging film, etc.
2. Construction industry: can produce a variety of building materials, such as thermal insulation materials, waterproof materials, thermal insulation materials, etc.
3. Agricultural industry: agricultural mulching film, greenhouse film, agricultural mulching film and other agricultural materials can be produced.
4. Medical industry: medical packaging film, medical dressing and other medical materials can be produced.
5. Industrial industry: can produce a variety of industrial materials, such as industrial packaging film, industrial insulation materials, etc.
Product Operate Guide
The specific operation steps of the five-layer co-extruder may vary depending on the equipment model and production requirements. When operating the equipment, strictly follow the equipment operation manual and related safety regulations to ensure the safety, stability and efficiency of the production process. The operation steps of this machine are as follows:
1. Prepare the required raw materials and ensure that the raw materials are sufficient.
2. Start the machine and preheat to ensure that the temperature of all parts of the machine is uniform and stable.
3. Adjust extruder, die head, auxiliary equipment and other parameters according to production requirements
4. Start the extruder and extrude the raw materials into sheets.
5. The extruded sheet is cooled through the cooling device, and the auxiliary equipment is used to shape the sheet
6. Cut and pack the cooled sheet for subsequent transportation and use.
7. After the end of production, clean and maintain the machine to ensure the normal operation of the equipment and extend the service life
